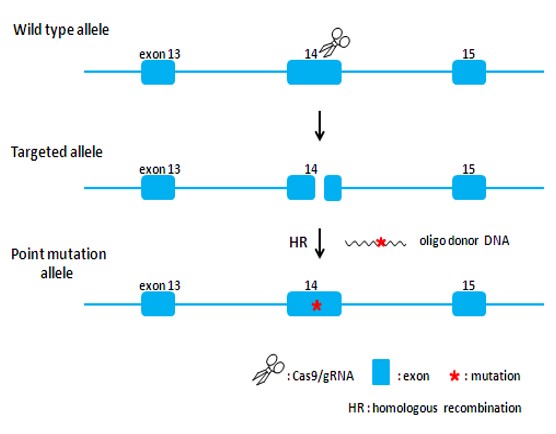

Strategy Figures

Landingpage-ASKI-18001-Atp7b(H1071Q)-KI-Mouse-1

Information of Knock-in Locus

Landingpage-ASKI-18001-Atp7b (H1071Q)-KI-Mouse-2

Result of in vitro Transcription of Cas9 and gRNA

Landingpage-ASKI-18001-Atp7b (H1071Q)-KI-Mouse-3

Figure 1: Agarose gel electrophoresis for in vitro transcribed Cas9 mRNA and guideRNA.

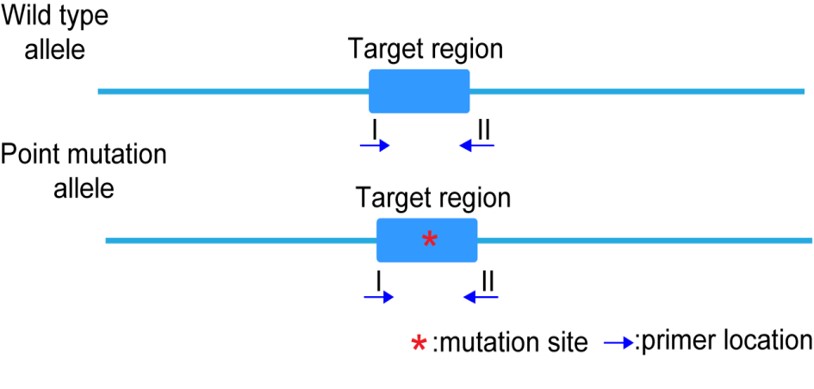

Genotyping Primer Sets for Identifying Homozygous, Heterozygous and Wild Type Mice

landingpage-aski-18001-atp7b (h1071q)-ki-mouse-4.01

Figure 2. For genotyping, PCR followed by Sanger Sequencing was used to identify homozygous, heterozygous and wild type mice.

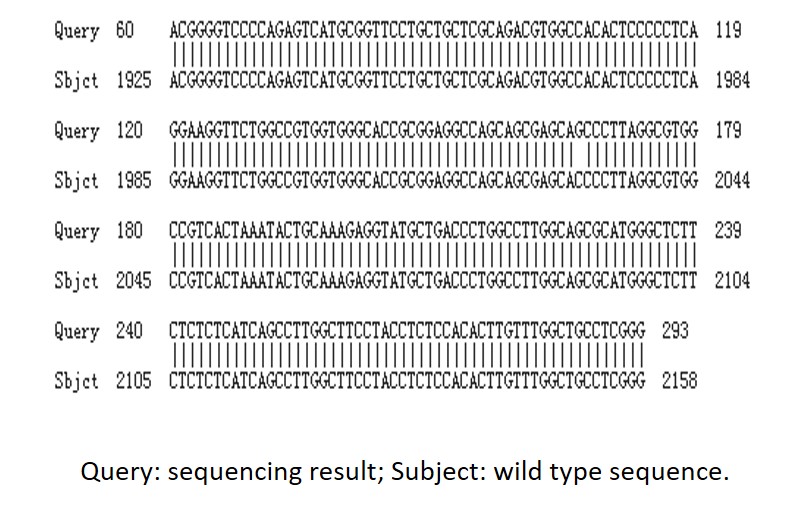

The Alignment of F1 Mice Sequencing Result

landingpage-aski-18001-atp7b (h1071q)-ki-mouse-5

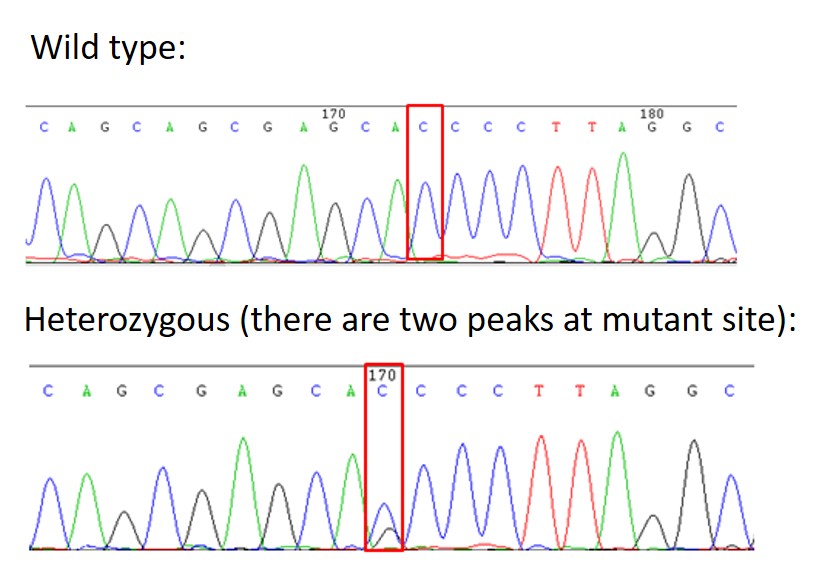

Genotyping Results

Landingpage-ASKI-18001-Atp7b (H1071Q)-KI-Mouse-4

Size
