Validation Data

landingpage-ashu-190039-pl-l1 (2)-hu-icpmouse-1

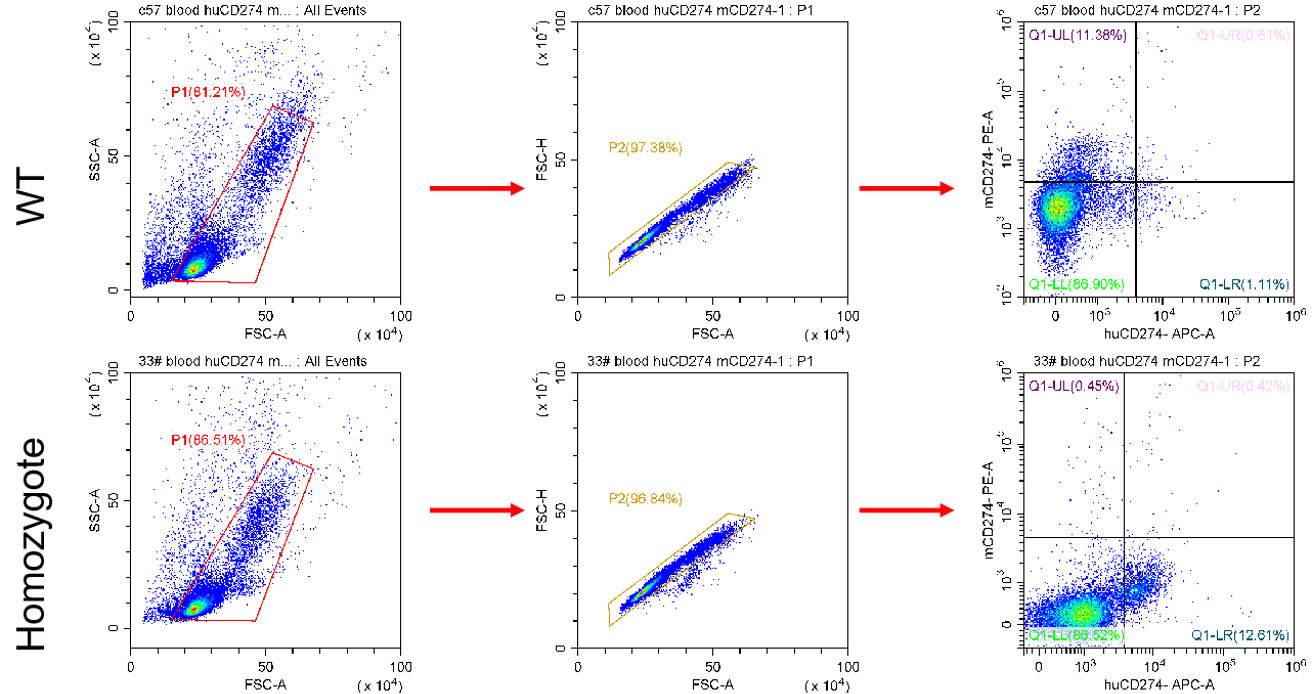

Figure 1. The expression of human PD-L1 in the peripheral blood cells derived from homozygous humanized mice were confirmed by flow cytometry analysis.

landingpage-ashu-190039-pd-l1-hu-icpmouse-2.1

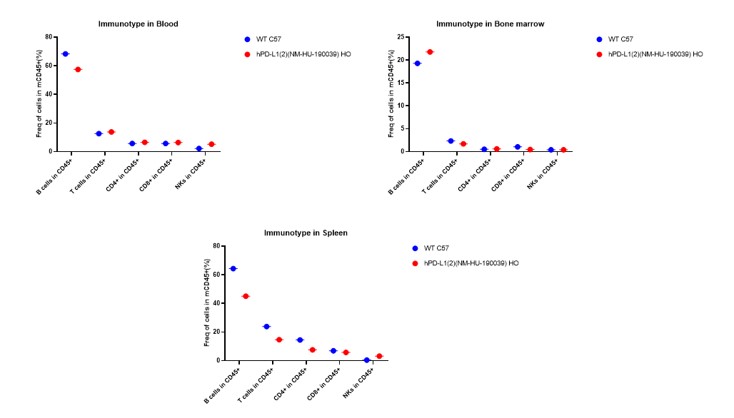

Figure 2. Immunotype in blood , spleen and bone marrow in hPD-L1 mice.

landingpage-ashu-190039-pd-l1-hu-icpmouse-3.1

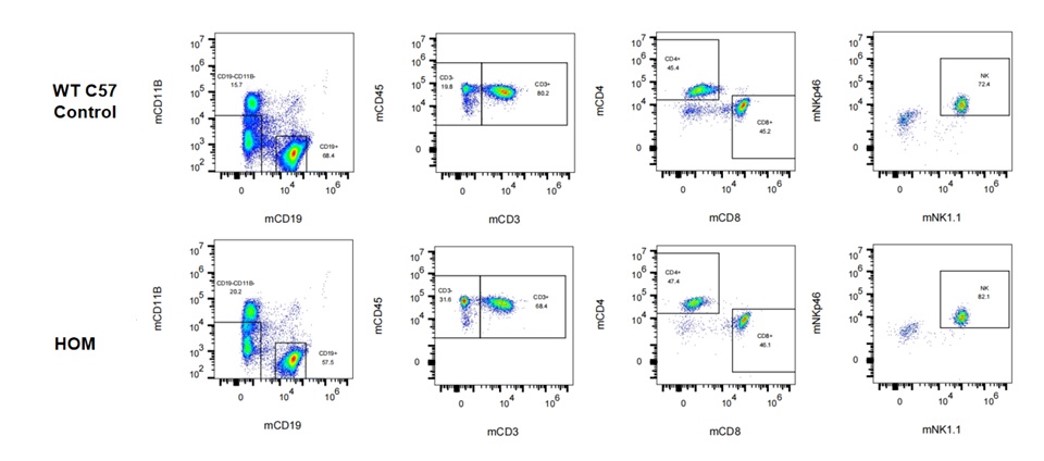

Figure 3. Immunotype in blood in hPD-L1 mice.

landingpage-ashu-190039-pd-l1-hu-icpmouse-4

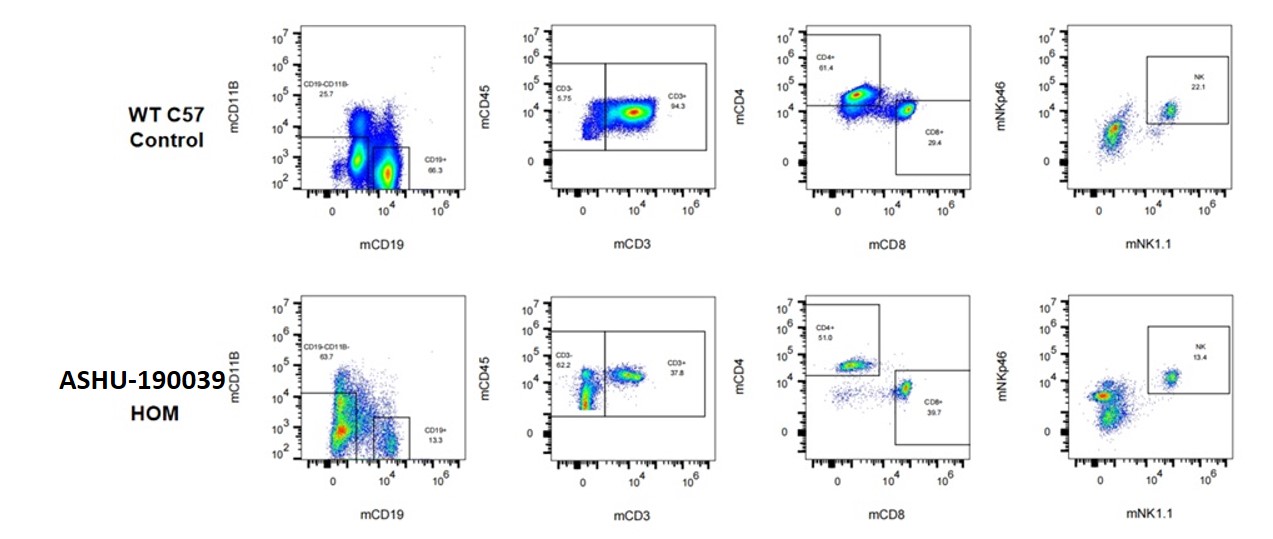

Figure 4. Immunotype in spleen in hPD-L1 mice.

landingpage-ashu-190039-pd-l1-icpmouse-5

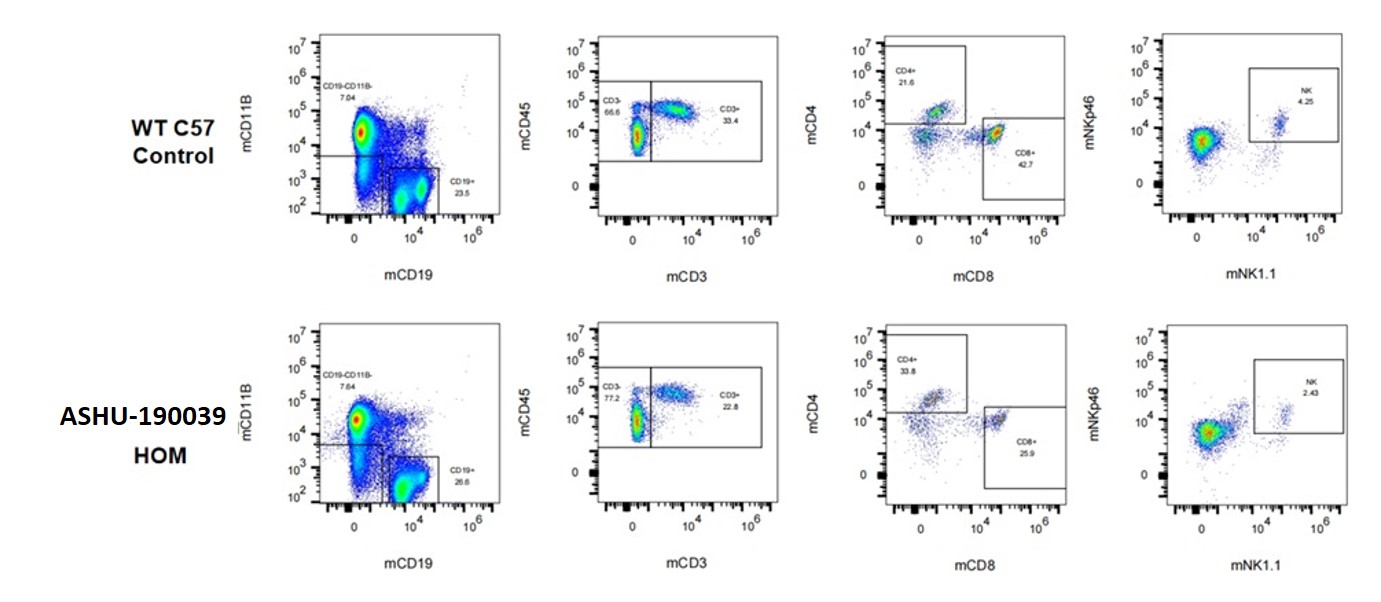

Figure 5. Immunotype in bone marrow in hPD-L1 mice.

landingpage-ashu-190039-pd-l1 (2)-hu-icpmouse-2

landingpage-ashu-190039-pd-l1 (2)-hu-icpmouse-3

Figure 6.  In vivo anti-tumor effect of an anti-human PD-L1 antibody in the humanized PD-L1 mouse model. (Tecentriq is a monoclonal antibody specific for human PD-L1)

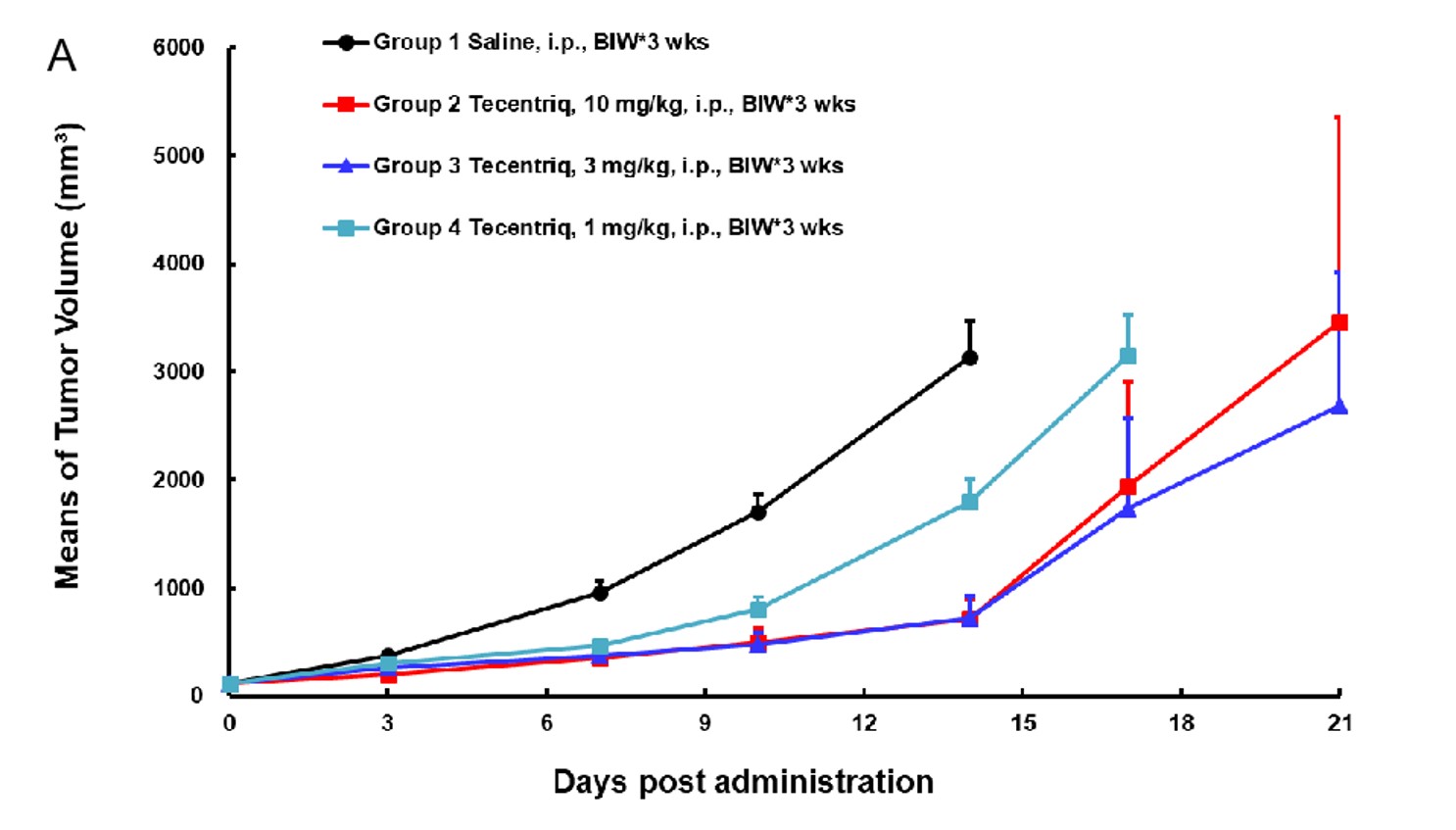

(A)  PD-L1 humanized MC38 cells were subcutaneously implanted into humanized PD-L1 mouse model. Treatment of hPD-L1 antibody inhibited PD-L1 humanized MC38 tumor growth, demonstrating that the humanized PD-L1 mice are a good in vivo model for validating the efficacy of antibodies targeting human PD-L1.

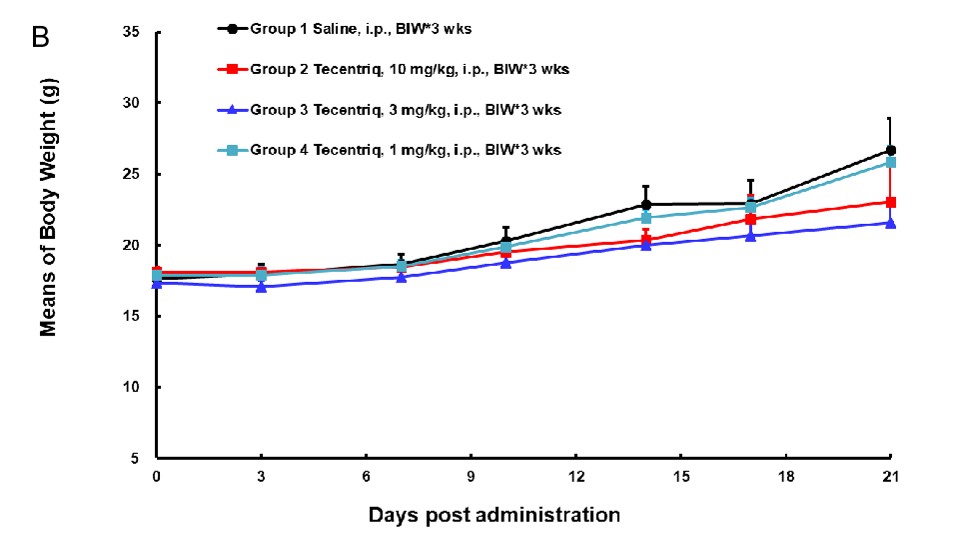

(B) Mean body weight of mice.  All quantitative data are represented as mean ± SEM.
