A characterized iPSC starting point for allogeneic and multilineage immune-evasion research.
One common strategy for engineering hypoimmune cells is to disrupt genes involved in HLA expression using B2M/CIITA double knock-out, which eliminates the expression of HLA Class I and II molecules.
But HLA knockout alone might not be enough. Natural killer (NK) cells provide another layer of immune surveillance. Unlike conventional T cells, NK cells can become activated when they encounter cells with abnormally low levels of HLA Class I. And this creates an important engineering challenge: reducing HLA Class I expression may decrease T-cell recognition, but the same modification can potentially increase susceptibility to NK-cell-mediated killing.
Rather than relying exclusively on HLA reduction, AST-9750 TARGATT™ Hypo Plus Human iPSC combines two targeted knockouts—B2M and CIITA—with five complementary immune-modulatory knock-ins that address complementary immune pathways.
This product also harnesses the power of the TARGATT™ platform, which means you can insert all these genes in a single reaction—up to 20 kb—with additional DNA over 20 kb added in nested reactions. And its placement at the H11 safe harbor locus avoids the potential for silencing and harmful random integration that you get with lentivirus and transposon-mediated integration and consistently delivers gene expression*.
| Table Header | Table Header |
|---|---|
Cat. # | AST-9750 |
Reprogramming method | Episomal |
Donor tissue | CD34+ Umbilical Cord Blood Cells |
Gender | Male |
Grade | Research only |
Quantity | 1 x 106 cells/vial |
*Constructs must have already been shown to be expressable in iPSCs or the differentiated cell type.

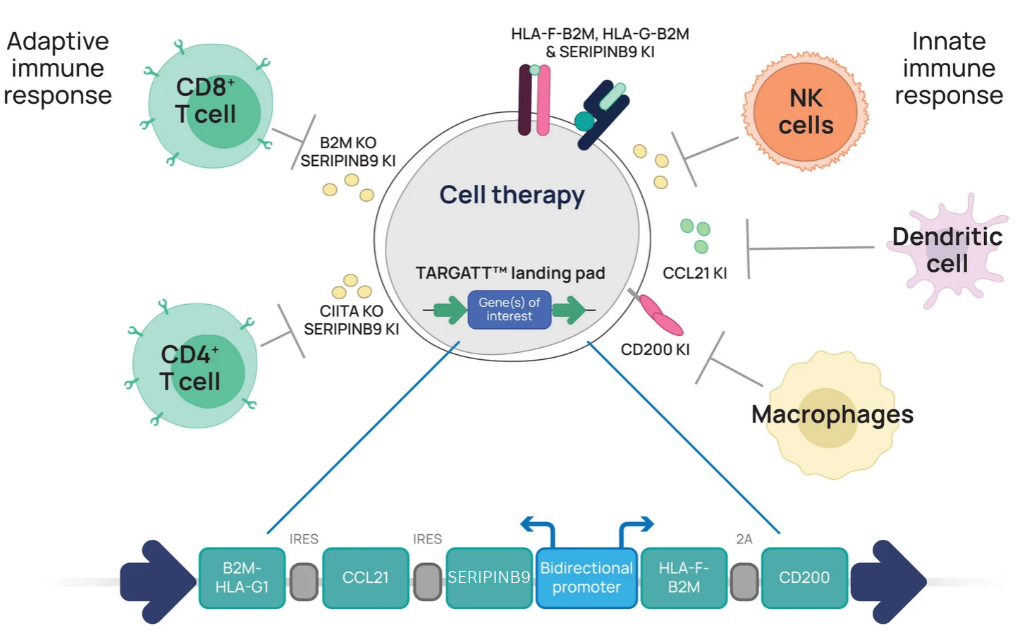

AST-9750 TARGATT™ Hypo Plus Human iPSC is a starting platform designed to address multiple mechanisms involved in allogeneic immune recognition and clearance by combining two targeted knockouts with five complementary immune-modulatory knock-ins.
B2M and CIITA double knockout
The cell surface expression of HLA I and HLA II molecules is eliminated by knocking out two genes (Figure 1):
Non-Classical HLA Signaling
HLA-F-B2M and HLA-G-B2M are two of the complementary immune-modulatory knock-ins incorporated to address innate immune responses associated with reduced conventional HLA expression, including NK-cell activity.
Myeloid and Immune Modulation
The CD200 knock-in provides an additional immunoregulatory mechanism relevant to interactions with myeloid immune cells, while the CCL21 knock-in adds another dimension intended to influence immune-cell recruitment and the local immune environment.
Cytotoxic Resistance
SERPINB9 is an endogenous inhibitor of granzyme B, a cytotoxic protease used by cytotoxic T lymphocytes and NK cells. Its inclusion as a complementary immune-modulatory knock-in provides an additional design element intended to address granzyme B-mediated cytotoxicity.
Together, these targeted knockouts and complementary immune-modulatory knock-ins are designed to address multiple adaptive and innate immune pathways.
Learn more about our approach to developing hypoimmunogenic hiPSCs by watching our webinar, “The Future of Allogeneic Therapy: ASC’s Hypoimmunogenic Donor Cells.”
Lot-specific Certificate of Analysis (CoA) available upon request.

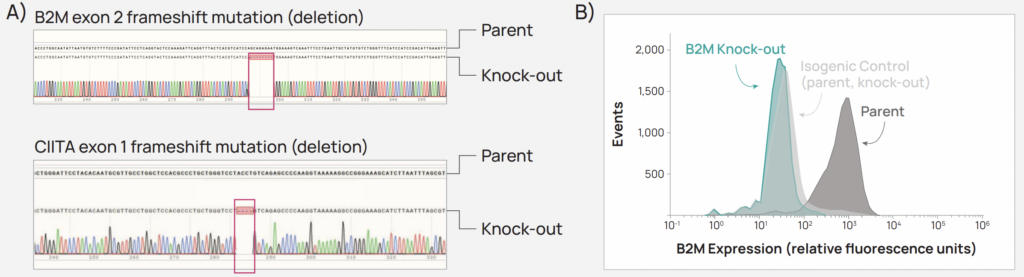

Sanger sequencing confirmed frameshift deletions. Flow cytometry confirmed loss of B2M protein expression.
Engineered HEK293 cells expressing HLA-G or HLA-F showed significantly lower NK-cell-mediated cytotoxicity than the mCherry control. The difference between the HLA-G and HLA-F groups was not statistically significant.

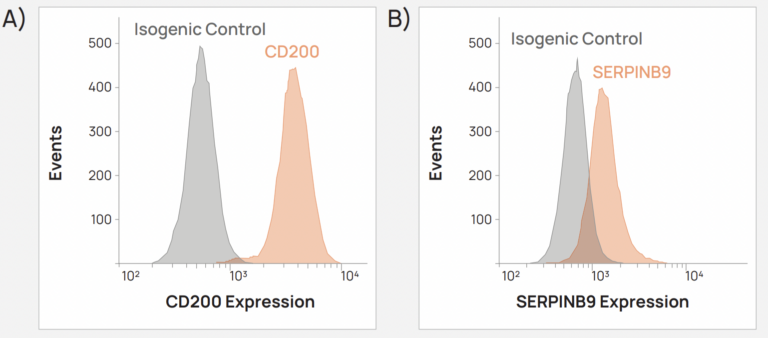

Flow cytometry confirmed CD200 expression in 97.8% and SERPINB9 expression in 72.4% of analyzed AST-9750 clone C25 cells. CD200 expression was highly consistent across the population, while SERPINB9 expression was more heterogeneous. These data directly confirm two elements from the inserted cassette.

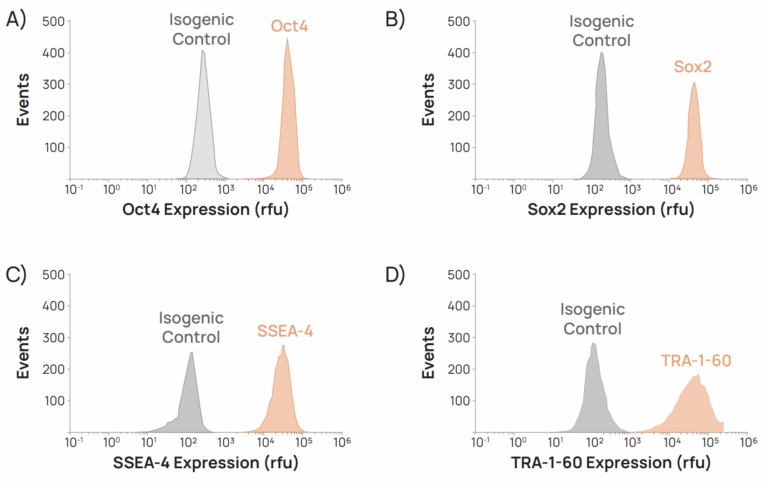

OCT4 and SOX2 are nuclear transcription factors associated with maintenance of pluripotency, while TRA-1-60 and SSEA4 are cell-surface markers commonly expressed by undifferentiated human iPSCs. The high positive populations support retention of a pluripotency-marker profile.
C25 and C26 were negative for selected pathogens and mycoplasma. No bacterial or fungal growth was detected. The results support baseline genomic and microbiological quality for RUO use.
